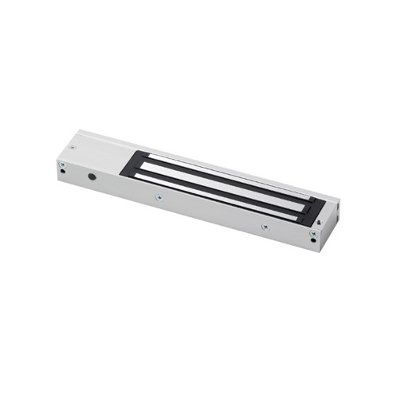

Mini Magnet Lock - Unmonitored
Mini Magnet Lock Features
- Up to 272kg (600lb) holding force
- MOV included - providing spike and surge protection
- Suitable for inward opening door using optional Z&L kit
- Ejector button on armature for instant release
- Virtually maintenance-free - no moving parts
- Current draw: 500mA @ 12Vdc or 250mA @ 24Vdc
- Dimensions: Magnet - 250 x 48 x 26mm (9.84 x 1.89 x 1.02")
- Armature - 185 x 38 x 12mm (7.28 x 1.50 x 0.47")
This unmonitored mini electro-magnetic lock can be fitted to inward and outward doors where 272kg holding force is sufficient. This form of locking device can be used in most access control applications
Part No. 308-121
Mini Z&L Bracket Part No. 308-118
