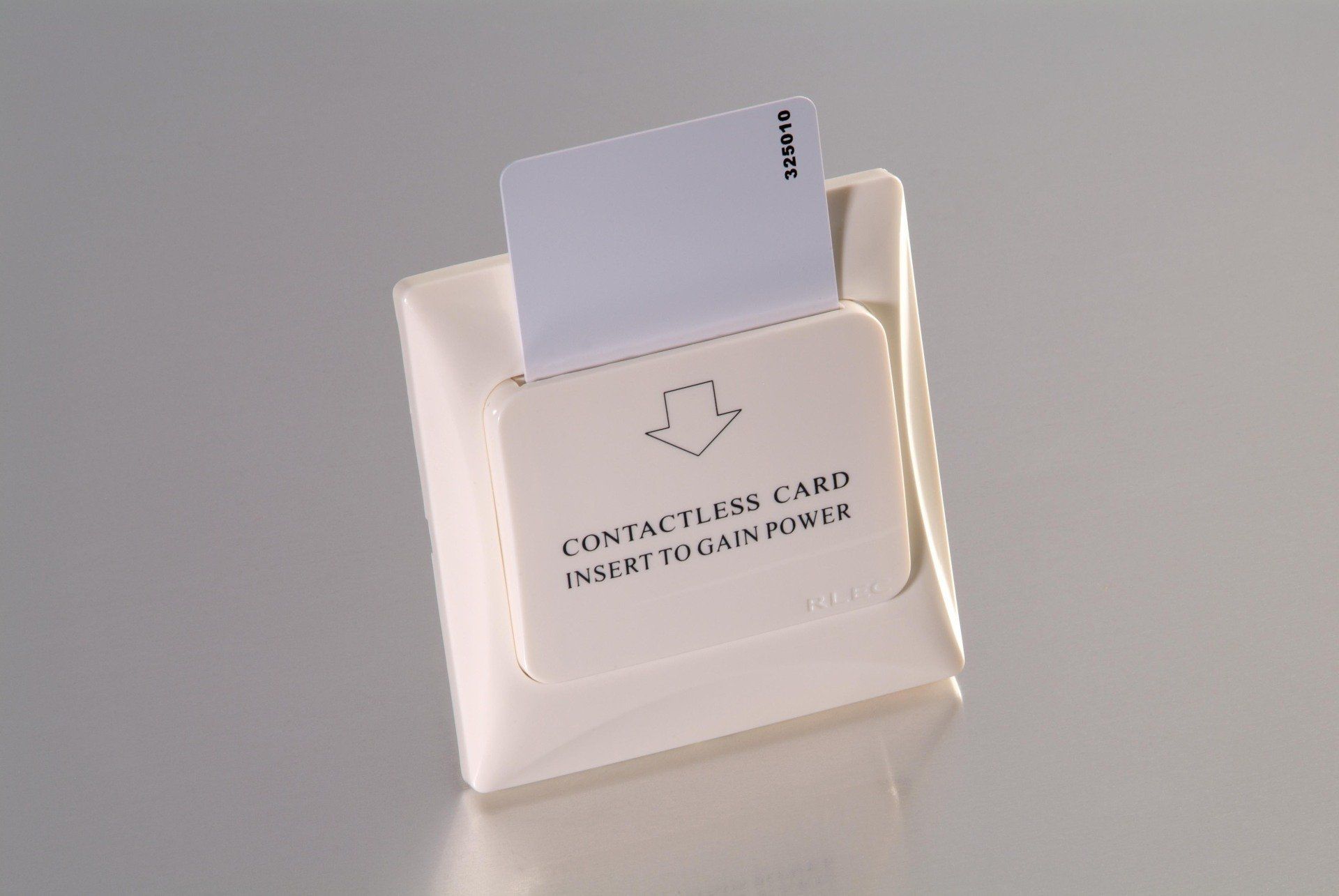

EKC-5 Electrical Key Card Switch

EKC-5 Electrical Key Card Switch Features



• Electronics powered from mains
• LED indicator
• Works with AX, HID and other compatible (Temic and EM) 125kHz cards & works with Mifare 13.56MHz cards
• Maximum load 30A 230 volt
• Compatible with standard single gang back box for easy installation
• Dimensions: 86 x 86.7 x 42mm
• Back box depth: 27mm
• Weight: 100g

The EKC-5 is a card operated electrical switch, allowing on / off control using a proximity card or Mifare card.

The unit is easy to use, by inserting an AX proximity card / Mifare card into the switch turns power on, removing the card will turn the power off after a 10 second delay.

Ideal for use in hotels, offices, and factories for controlling lighting and machinery etc.

125kHz Part No. 999-007

13.56 MHz Mifare Part No. 999-008
