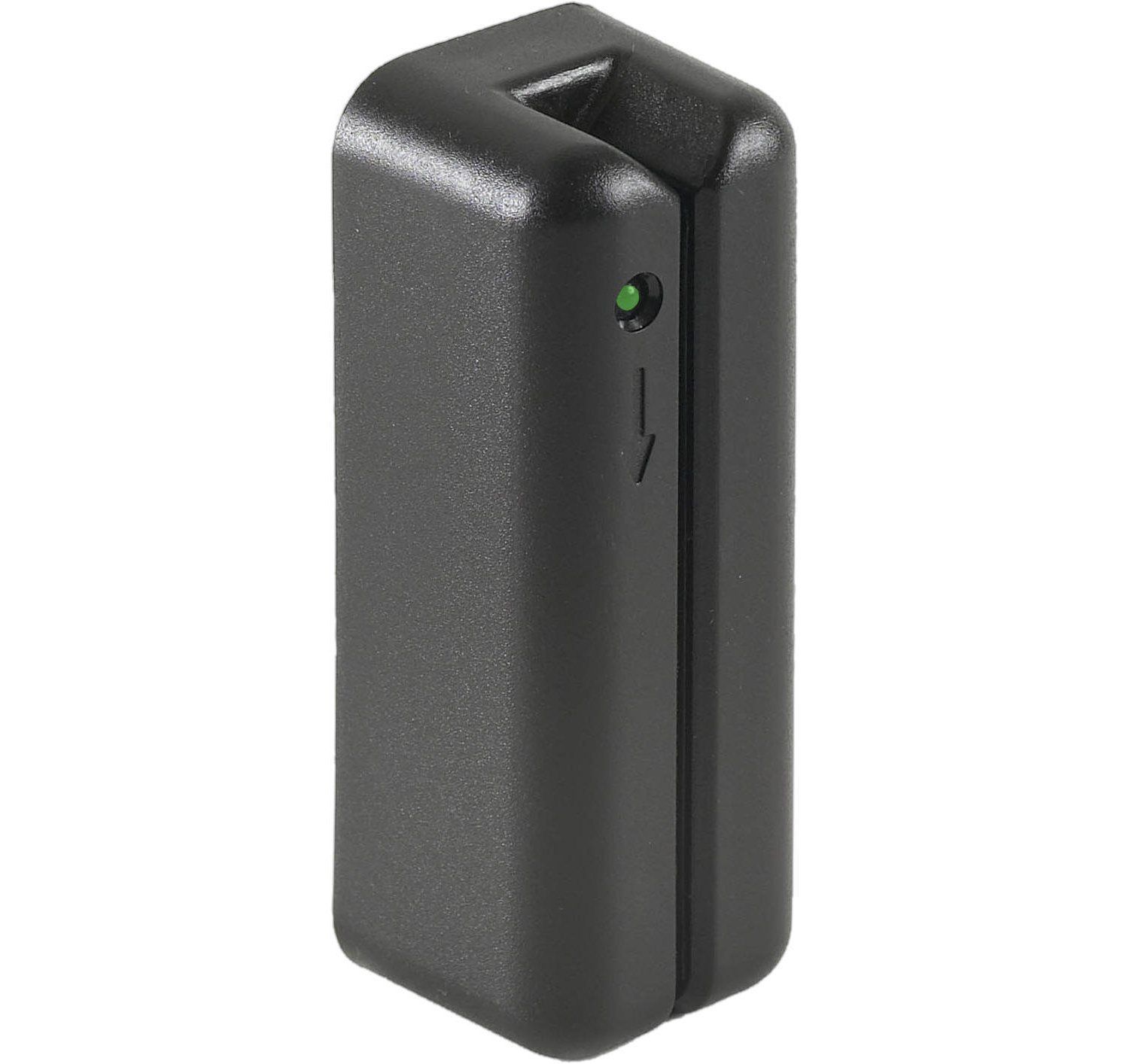

AXM Magstripe Reader

AXM Magstripe Reader Features

  • Impact-resistant ABS magstripe reader.
  • For internal or external use.
  • Single tri-colour LED normally red, green and yellow activated via external line.
  • UV-resistant ABS.
  • Stainless steel fixing plate with internal/external secure fixing (optional rear fixing kit).
  • Reliable read capability with head life in excess of 1 million passes.
  • Track 2 ISO (other tracks manufactured to special order).
  • 2.5 metre (8.2ft) 8 core screened cable.
  • Dimensions: 112 x 42 x 36mm (4.40 x 1.65 x 1.41").
  • All electronics are encapsulated in epoxy resin (except read head and buzzer aperture).
  • Card speed is 125 to 380cm per second (5 to 15" per second).
  • Data range 325 to 12,250 bits per second.
  • Reads lo-co and hi-co magnetic stripe cards.
  • Weatherproof -25°C to +65°C (-13°F to +150°F).
  • Internal buzzer with external control lineCMOS Clock, Data and Card Present outputs.

The AXM magstripe readers provide high-performance and reliability for any application; whether high- security access control, electronic point of sale, time and attendance or purely data acquisition. A wide variety of output formats are available to provide flexibility for most OEM applications.


Part No. 105-233-BK-y


y signifies output

2 - clock & data

3 - Wiegand 26 bit

4 - Wiegand 36 bit

5 - Wiegand 50 bit
