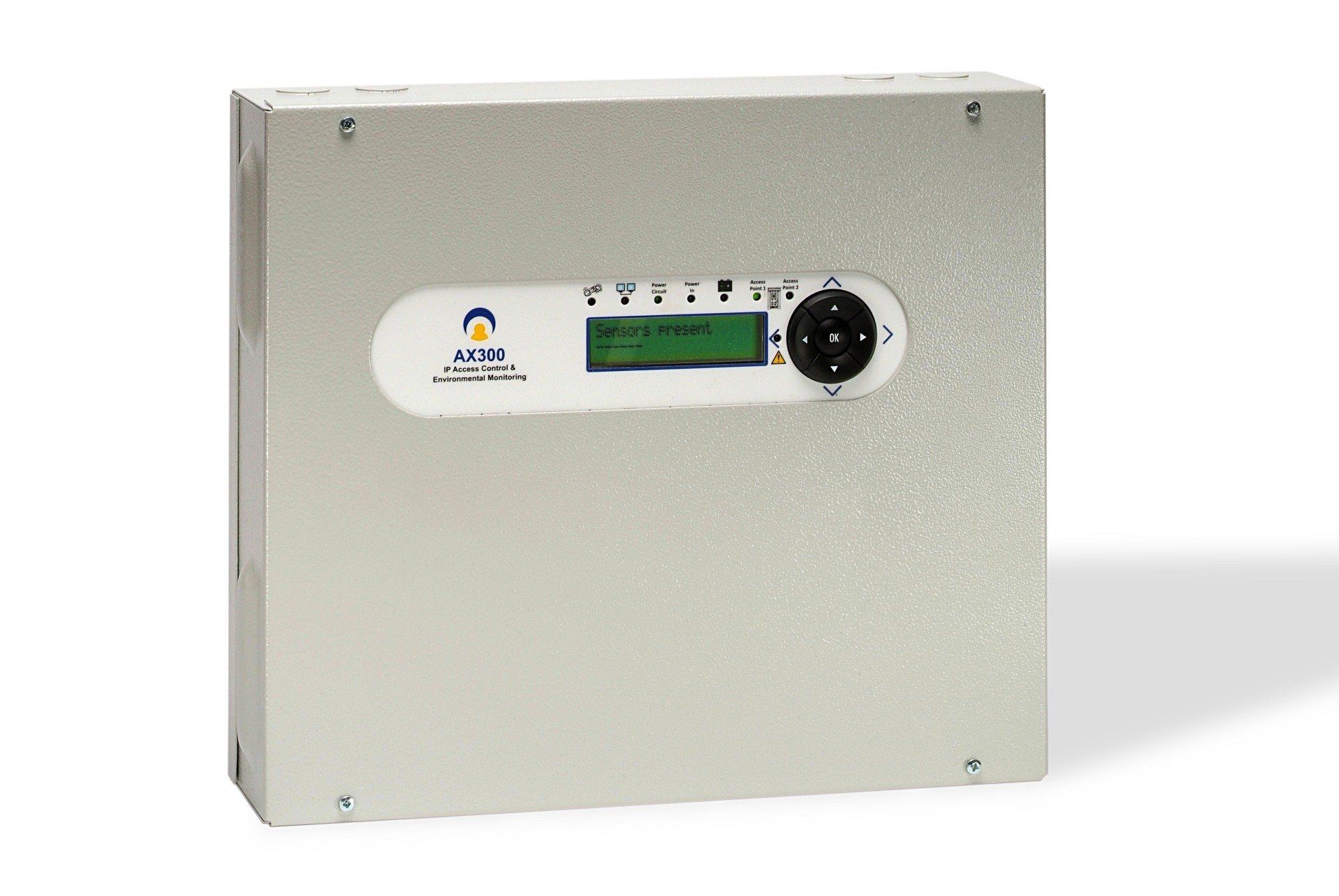

AX300 - 1U

AX300 2 Door Kit Contents


1 x AX300 Controller

1 x controller fixing kit

2 x Proximity Reader(AX Mini)

2 x reader fixing kit

1 x UTP CAT5e 2 Metre Patch Lead

1 x Installation / User Guide

1 x CD with software

The IP-based controller supports 4,000 cards, 128 time zones and 4,000 transactions, this is expandable to 12,000 / 32,000 cardholders with 256 time zones and 8,000 transactions stored locally for larger systems through a 6 smart sensor port.


Controllers can be added to the network through the plug and play central software or through the built-in keypad and display to minimise installation time.


The high end controller is, due to its single box solution, easy and quick to install with no need for external power supply or input/ output modules. A 7 Ampere 12 volt battery (optional), provides emergency back-up in case of mains failure withcentral reporting of the fault. An automatic cut-out and conditioner ensure the maximum lifetime of the battery. The electronic fuses are processor controlled and re-instated automatically with clear fault indication. A suite of diagnostics are built in to aid the installer and minimise downtime.


The front panel LCD display and push buttons allow the installer basic configuration of the controller, alleviating the need to take a laptop onsite. The LCD display also provides instant ‘at a glance’ system status.


The programmable door mode settings allow the security level to be changed at preset times to automatically open, normal mode, or buddy (2 cardholders required).


Technical Data


Dimensions:30 x 26 x 7.5cm (11.8 x 10.2 x 2.9”)

Weight:2.4kg (5lb 2oz)

Material:Powder-coated steel

Power requirement:220-240v Normal operating

temperature:-10ºC to +40ºC

Current consumption52.14W at 237Vac @ 0.22Aac

Based on a typical example on the AX300 controller with two standard magnet locks and two proximity readers, BTU = 182.49


Part No. 105-330-AXMP
