AX100 Data Transfer Unit (DTU)

The AX100 is a stand-alone single reader controller, supplied with plug and play Windows software.

The compact controller supports up to 4,000 cardholders with cards being added or deleted using the easy-to use Windows software. The controller is not only small - it fits entirely within a standard single-gang electrical back-box but has no on-board jumper settings making it not only simple to install but a lot quicker than conventional controllers.

The plug and play features, which automatically detects the hardware, together with the built-in setup and test card wizards, ensures a fully operational system within just a few minutes.

The powerful SQL-based software includes over 60 database fields including cardholder photographs and vehicle details.

Although communication is to a single AX100 controller, the software can store data for thousands of controllers. Upon connection of the software to the controller, the unit is recognised via its unique identity number and the correct controller data is automatically selected.

The graphical interface is easy to use, even for those of you not familiar with the Windows interface. Lost or stolen cards can be quickly cancelled and replaced using the Card Replacement Wizard thus avoiding the need to re-enter all the cardholder data and also to keep track of previously issued cards.

The Card Management function provides a quick overview of the total number of cards lost, stolen, active and the total spares available enable re-ordering of cards when necessary.

Controllers, communication, card formats and batch loads are all set-up quickly and easily through the easy-to use on-screen wizards.

Part No. 105-104-X-CC

Where X signifies Cards or Fobs and CC signifies reader colour

WH - White

BK - Black

GG - Graphite Grey

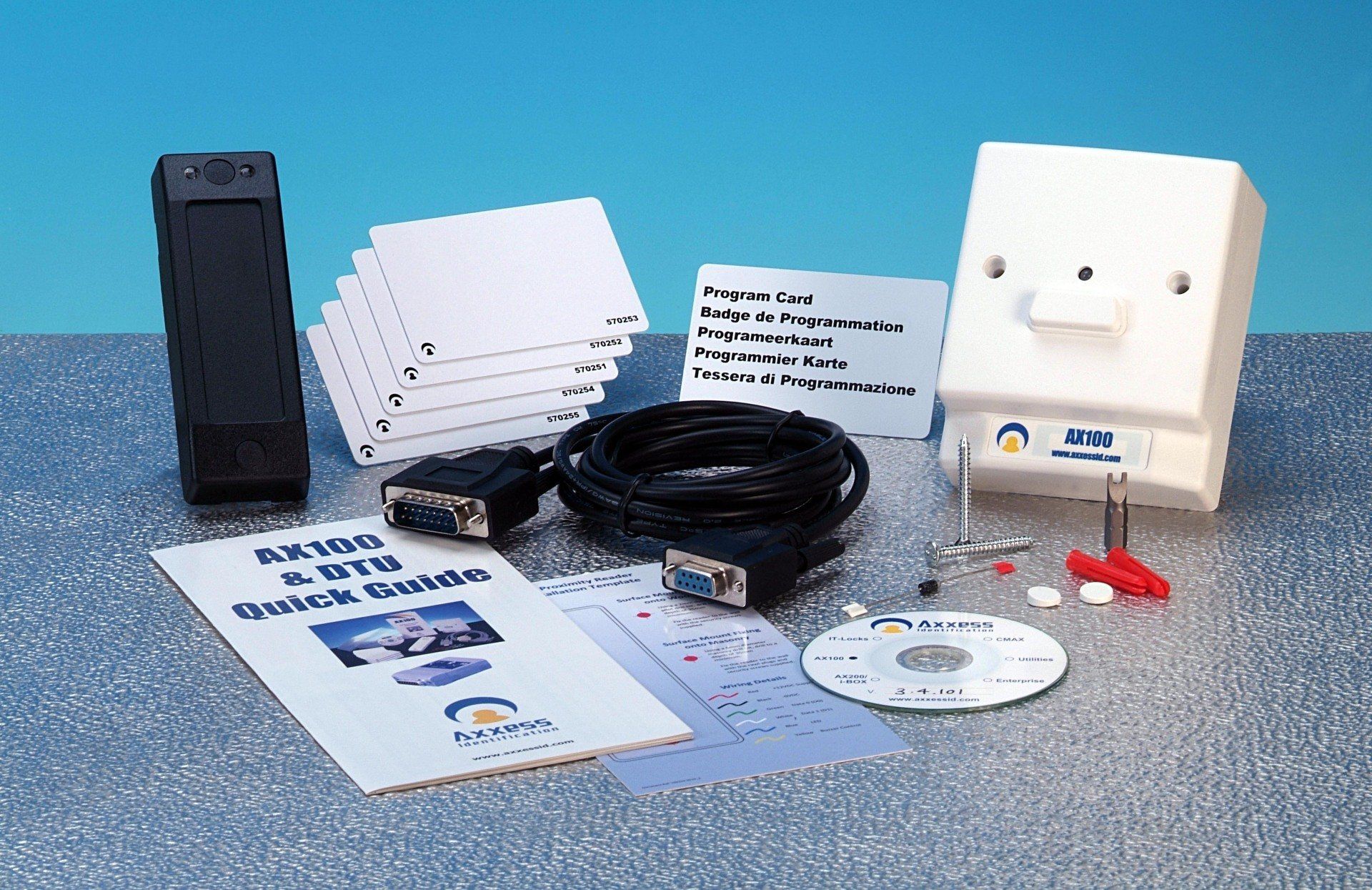

AX100 Kit with AXM Magstripe Reader Part No. 105-111

Program Card Part No. 205-222
